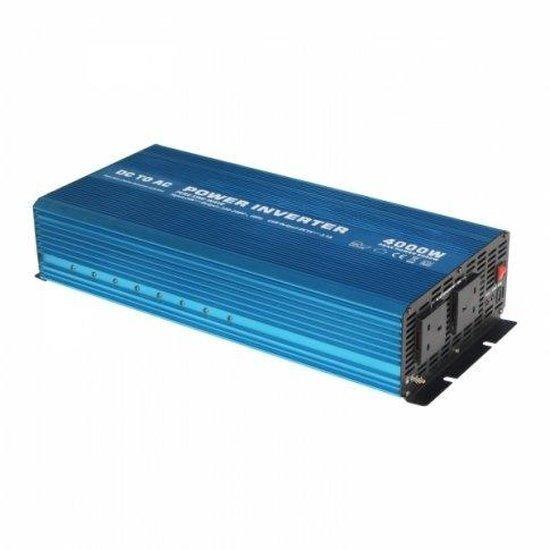

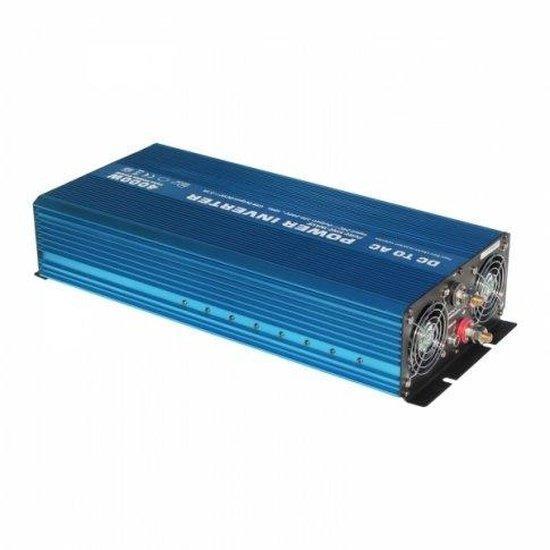

The Photonic Universe 4000W 24 V pure sine wave inverter supplies 230 V AC via UK sockets — ideal for boats, motorhomes and off‑grid systems.
- Pure sine wave output is best for running appliances because it’s compatible with a broader range of devices, including those with electric motors; modified sine wave inverters may not power them correctly.
- For typical power consumption by appliance, see the table in the Details tab.
- Specifications: Continuous power: 4000W; Surge power: 8000W; Input: 24 V (20–31 V) DC; Output: 220–240 V AC; Output frequency: 50–60Hz.
- Output waveform: pure sine wave; THD: less than 3%; Peak efficiency: 87%.
- USB output: 2.1 A for faster charging of phones and USB devices.
- Low battery alarm: 23 V ± 1 V DC; Low battery shut down: 21 V ± 1 V DC; High voltage shut down: 31 V ± 1 V DC.

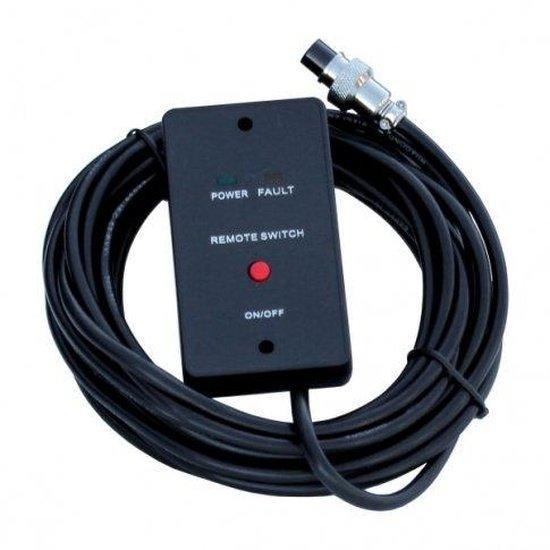

- Includes a remote on/off switch with 5 m cable. Size: 54 x 23 x 11 cm (21.3 x 9.1 x 4.3 in). Weight: 9 kg (19.8 lb). The product is covered by a 1‑year warranty.
- Recommended for users of 24 V solar charging systems: this inverter can be connected to your 24 V battery/battery bank alongside other system components; cables for 24 V do not need to be as thick as those required for 12 V systems.
- Following documents are available to download: User manual for 4000W 24 V pure sine wave inverter (IPC-4000-24).
For compatibility and care, ensure cabling and battery capacity match the inverter's input requirements and consult the user manual for installation and safety guidance.
