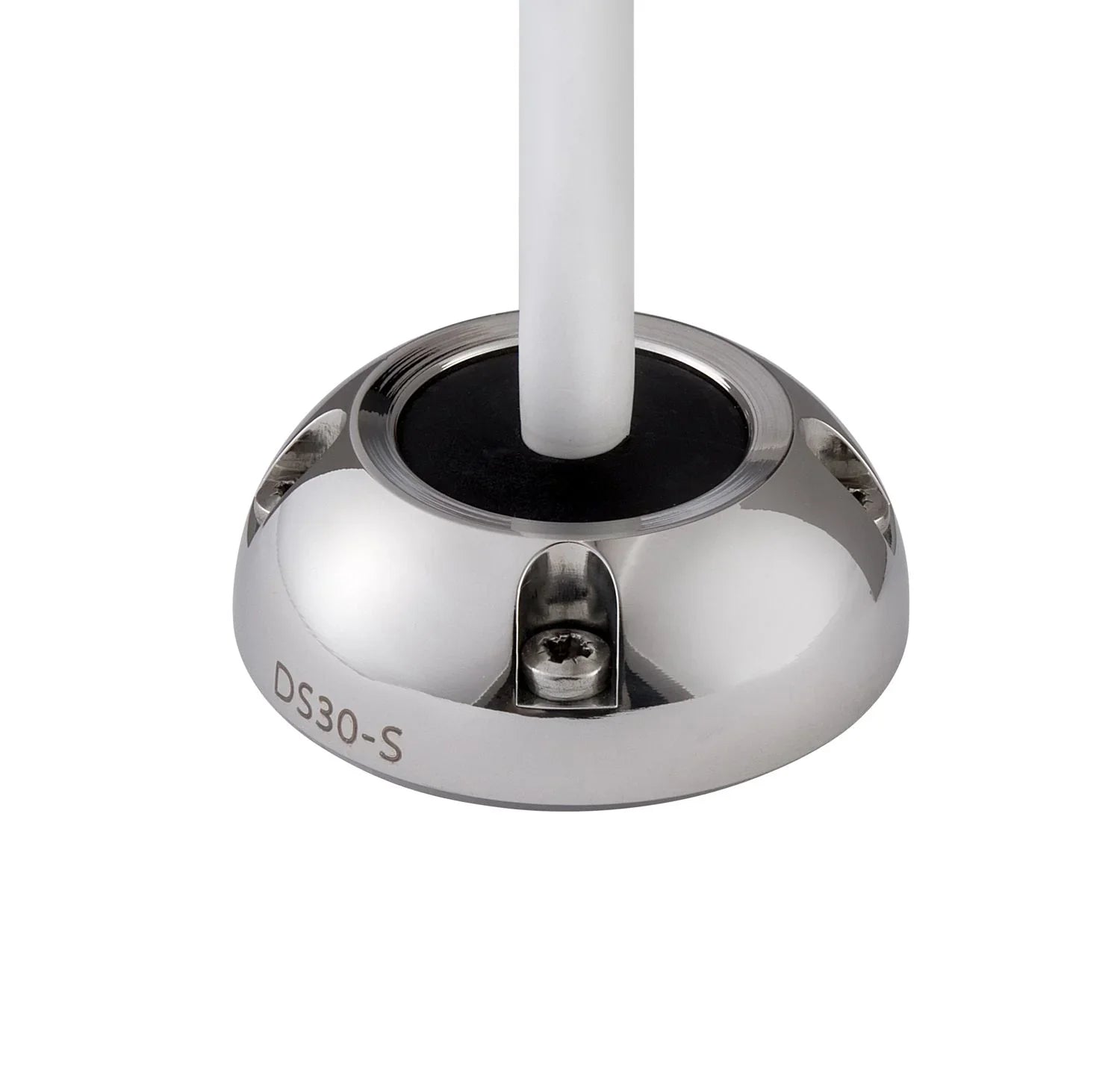

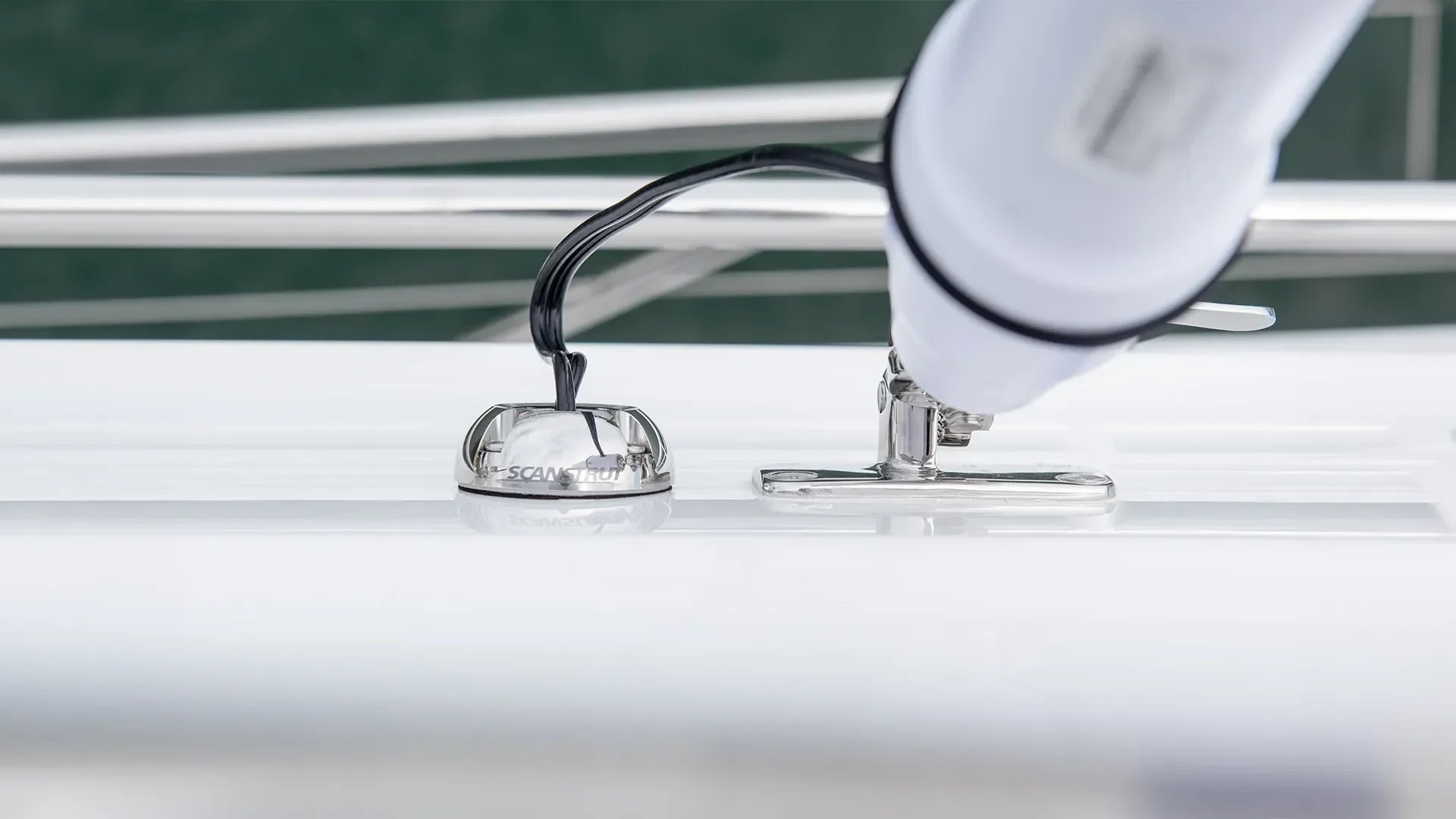

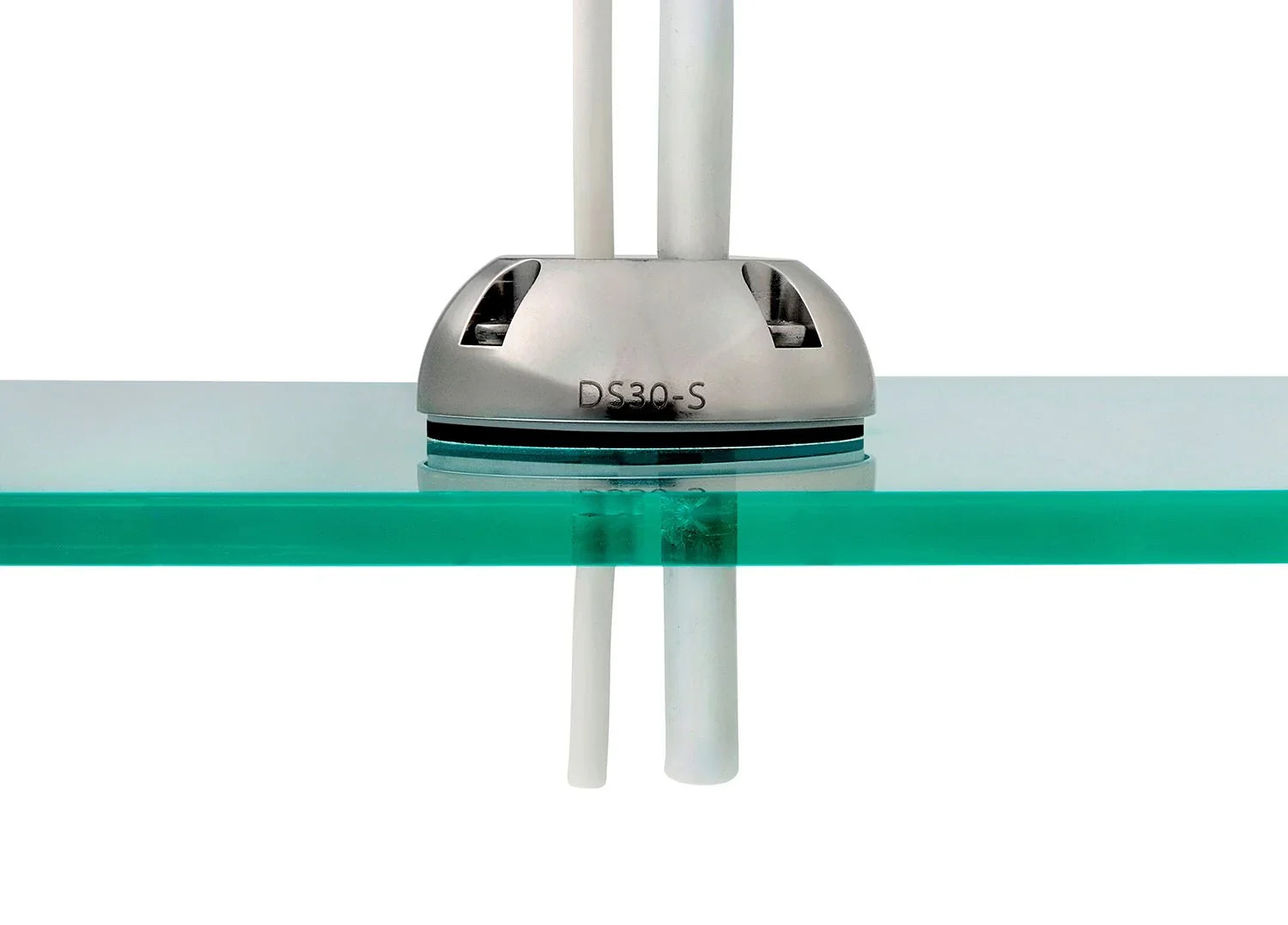

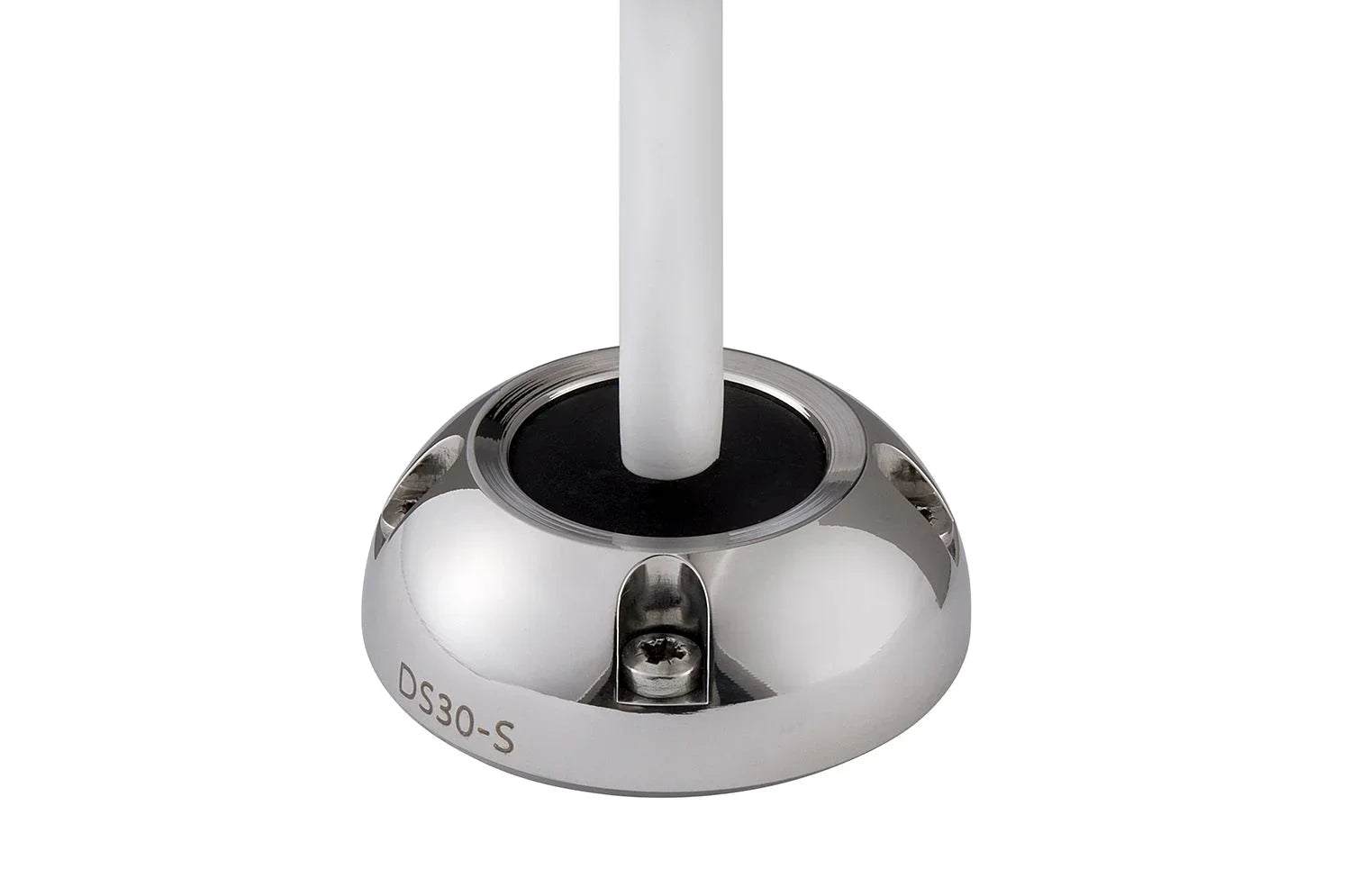

Scanstrut DS30-S stainless vertical cable seal provides an IP68 watertight entry for marine cables and connectors, with an impact-resistant dome profile and easy, repeatable installation.
- IP68 tested and approved
- For cables 9-14 mm (0.35-0.55 in)
- Accepts connectors up to Ø 30 mm (1.18 in)
- Stainless steel construction for corrosion resistance
- Closed-cell base seal for 100% waterproof installation
- Tapered bung creates watertight seal; split-seal option avoids connector removal
- Captive nuts for easy assembly and reliable repeat installations
- Dome-shaped, impact-resistant profile with outer water shield
- Supplied with pre-drilled and blank inner seals for flexible fitting
Download the DS30-S Technical Drawing for dimensions and installation details.
