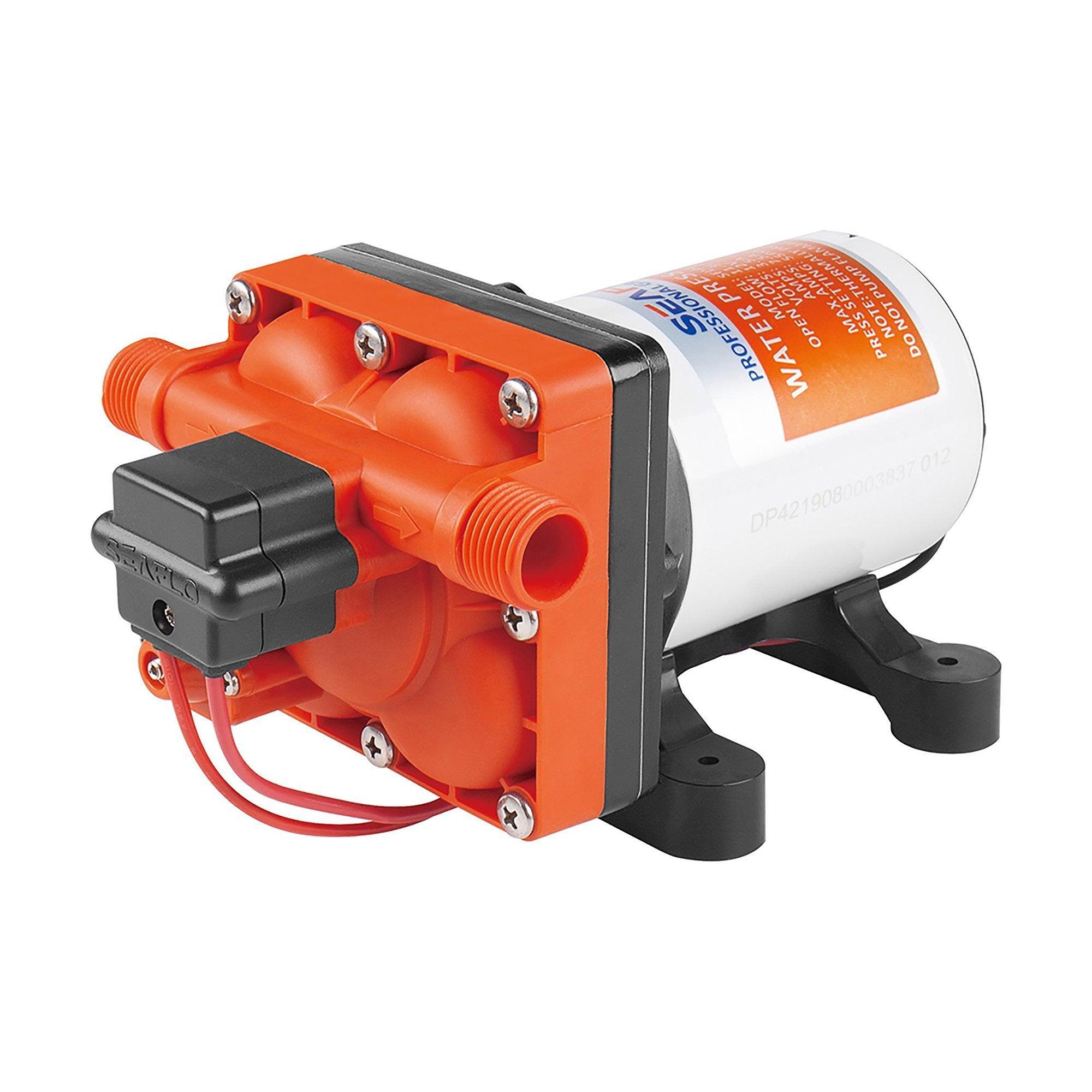

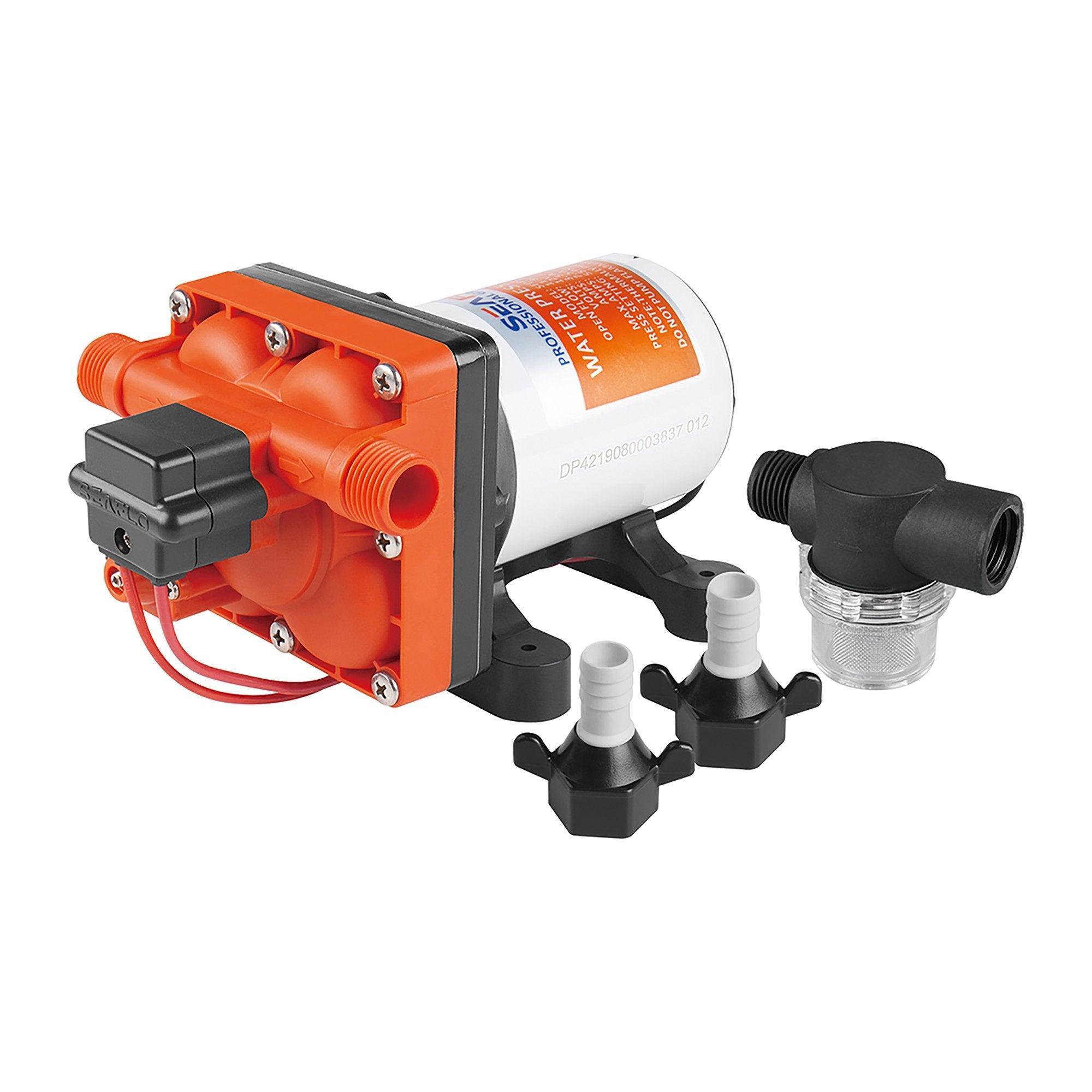

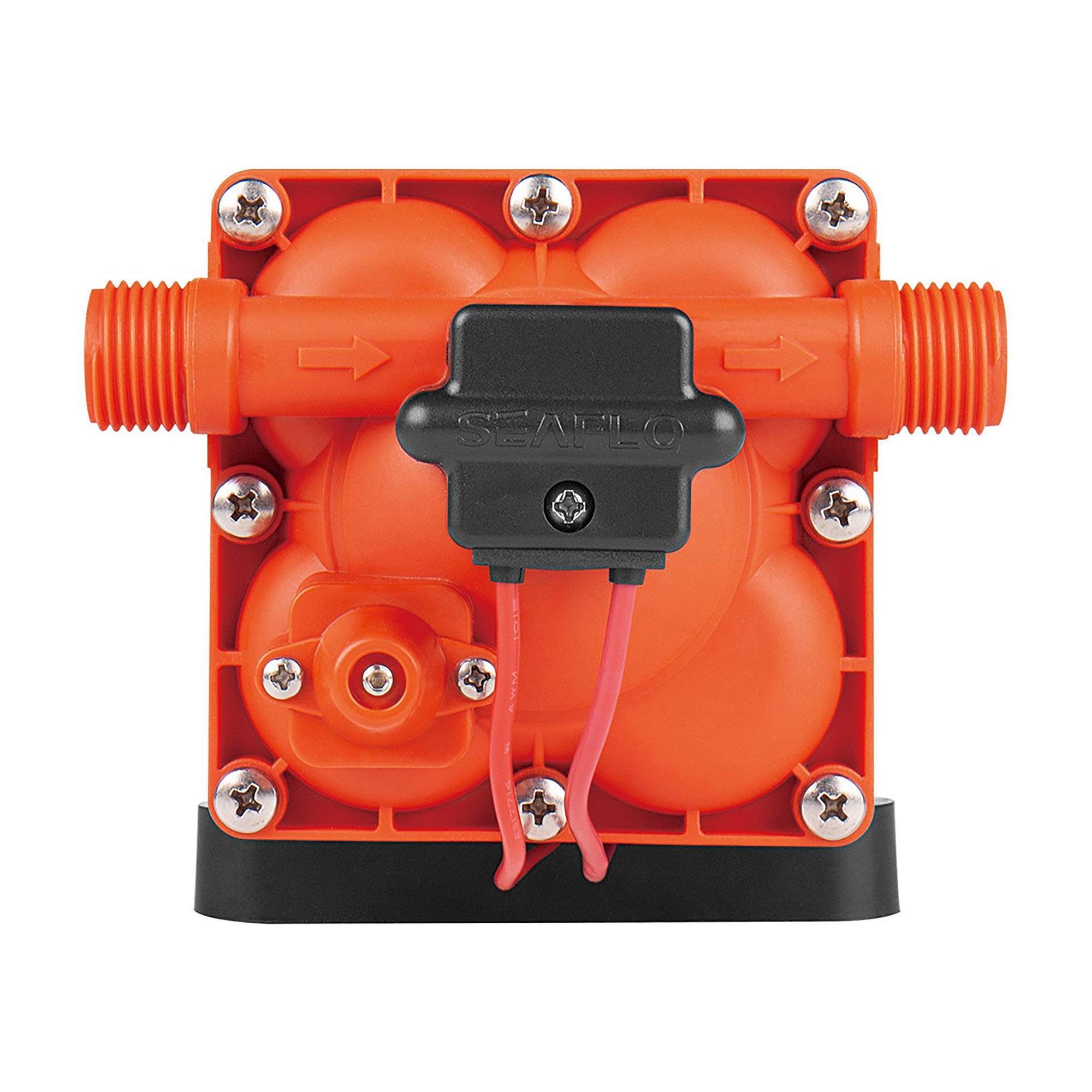

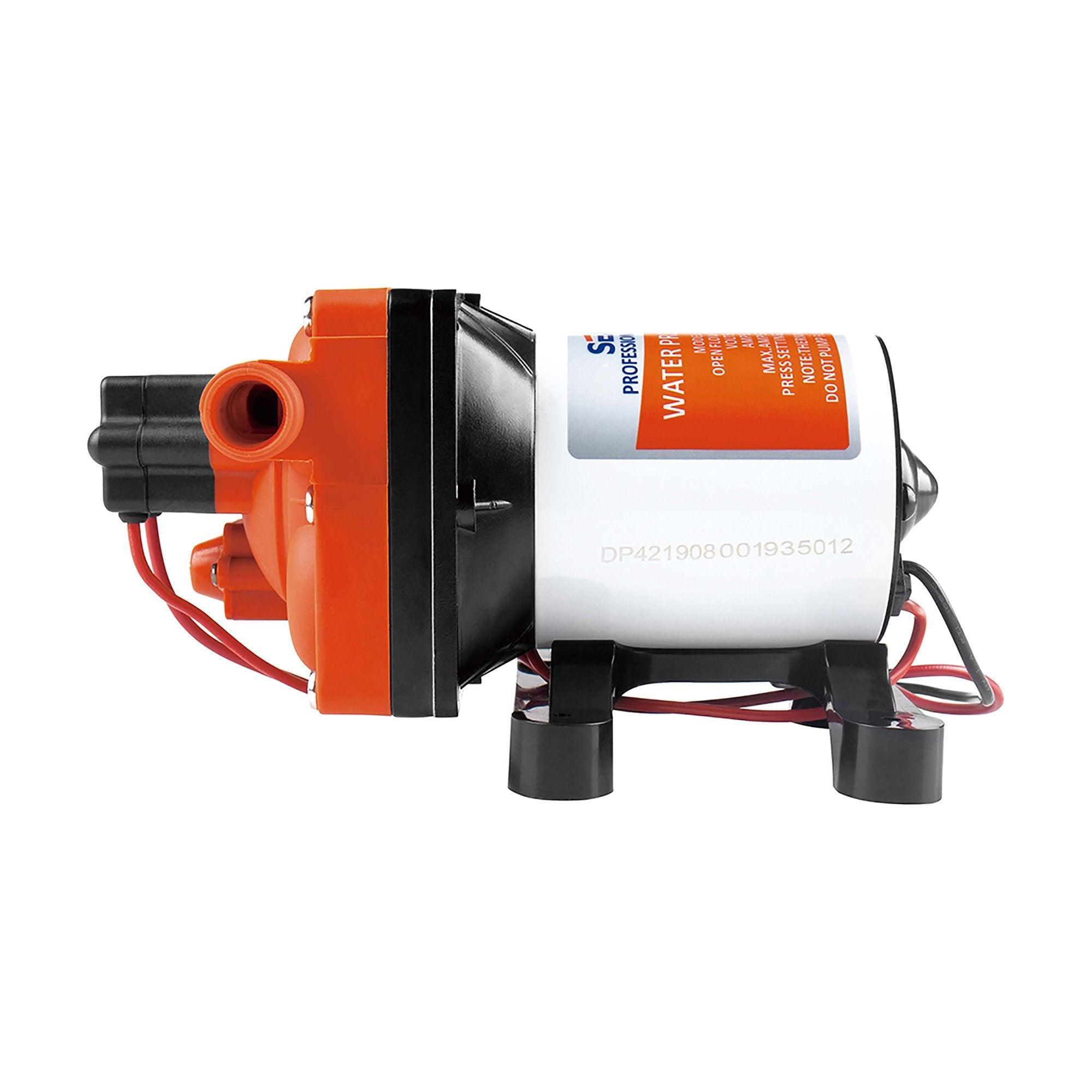

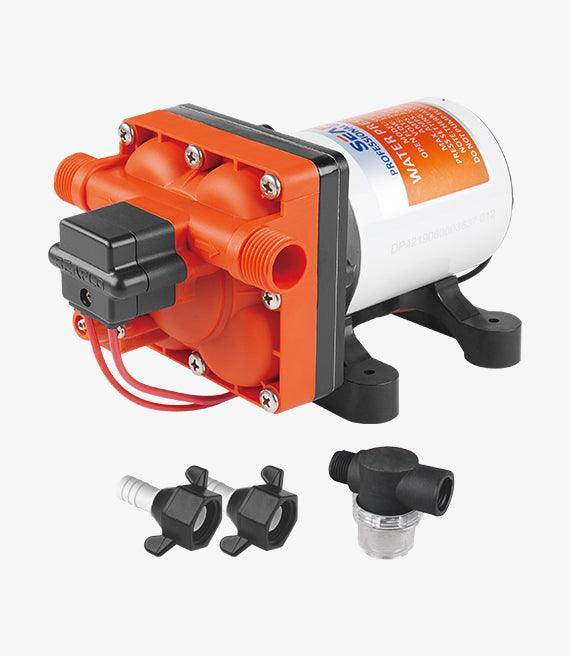

SEAFLO 42 Series 24V Pump - DP203005542

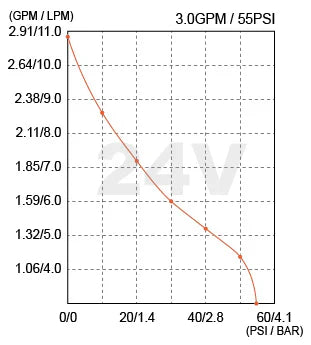

3.0 GPM | 55 PSI | Intelligent Bypass Technology
The SEAFLO 42-Series is a premium 4-chamber positive displacement diaphragm pump designed for high-demand water systems in marine vessels, RVs, and agricultural setups. Engineered for efficiency, this 24V model delivers a consistent 3.0 GPM flow rate with a 55 PSI shut-off pressure, providing house-like water pressure on the go.
Key Features
- ✔ Self-Priming: Up to 6 vertical feet (1.8m)
- ✔ Run-Dry Safe: Capable of running dry without damage
- ✔ Quiet Performance: Noise-dampening rubber mounting feet
- ✔ On-Demand: Automatic pressure switch control
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 3.0 GPM (11.3 LPM) |
| Shut-off Pressure: | 55 PSI (3.8 Bar) |
| Max Amperage: | 4.0A |

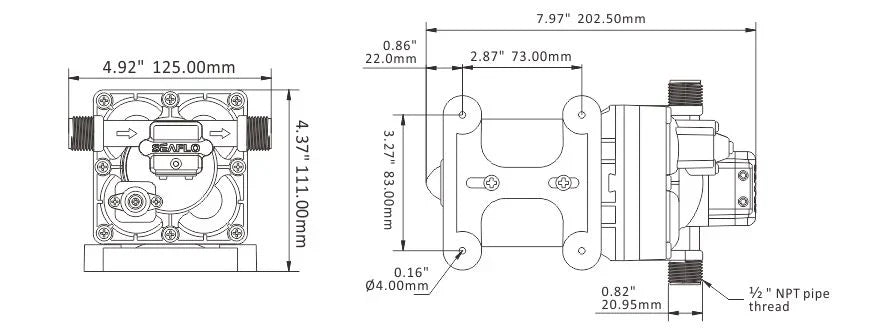

| Ports: | 1/2"-14 MNPT |
| Valves / Diaphragm: | EPDM / Santoprene |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine / Yachts | 24V DC House Systems | Supports up to 3 fixtures |
| RV / Caravans | Off-Grid Water Supply | Quiet operation for night use |
| Agriculture | Spraying / Transfer | Chemical resistant EPDM valves |
OEM Cross Reference
| Seaflo Part Number: | SFDP2-030-055-42 / DP203005542 |
| Shurflo Equivalent: | 4138-131-E65 (Aqua King II Standard 24V) |
| Jabsco Equivalent: | 31395-0094 (Par-Max 3 24V) |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 42-Series pump, manufactured to the highest marine standards for high-performance and durability.
How do I know if it is compatible?
Compare your existing pump's voltage (must be 24V) and flow rate. This model uses standard 1/2" MNPT threaded fittings, making it a direct replacement for most Shurflo and Jabsco pumps with similar specifications.
Do I need an accumulator tank with this pump?
No, the internal bypass technology handles low-flow demand without the rapid cycling typical of older pumps, eliminating the strict necessity for an external accumulator tank.
Note: Please verify your system voltage is 24V before purchasing. For the 12V version, please see our other listings at 4boats.co.uk.
