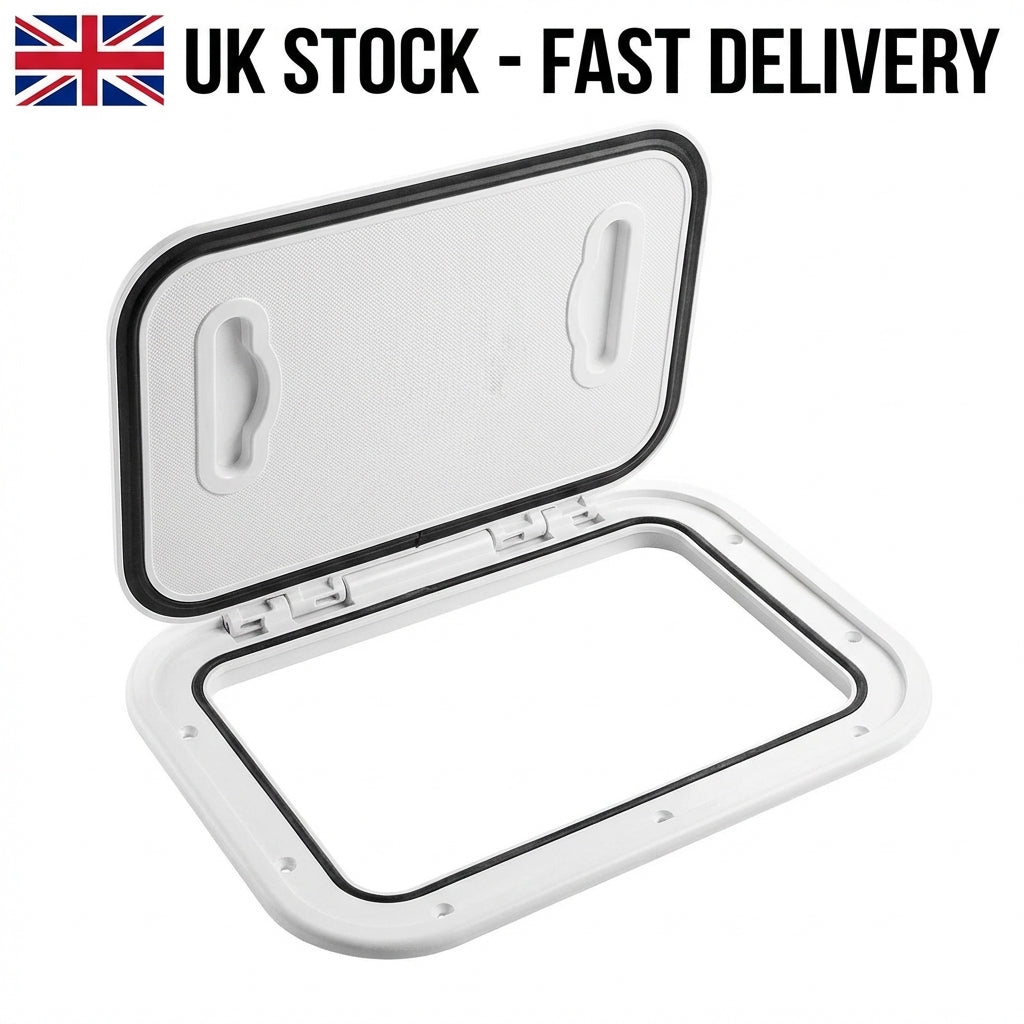

Nuova Rade Top Line Hatch 196300
315 x 440 mm | ISO 12216 Certified Watertight Access
The Nuova Rade Top Line Deck Hatch (SKU: 196300) is the industry standard for tough, UV-resistant marine access solutions. Engineered for both horizontal and vertical mounting, this rectangular hatch is perfect for accessing storage lockers, fuel lines, electrical cables, or battery switches. Its sleek, low-profile design features hidden screw holes to ensure a professional, flush finish on any deck or bulkhead.
Key Features
- ✔ High-Grade ASA: UV and chemical resistant material.
- ✔ 180° Opening: Door opens fully for unhindered access.
- ✔ Watertight Seal: Equipped with a durable EPDM rubber gasket.
- ✔ Non-Skid Surface: Safe for deck mounting and walking.
- ✔ Easy Installation: Pre-drilled hidden mounting points.
Technical Specs
| External Size: | 315 x 440 mm |
| Cut-out Size: | 237 x 357 mm |
| Clear Opening: | 243 x 363 mm |
| Material: | UV-Stabilized ASA |
| Color: | White |
| Standards: | ISO 12216 |
Compatibility / Application Guide
| Application | Vessel Type | Notes |
|---|---|---|
| Deck Mounting | Yachts, Ribs, Powerboats | Suitable for walk-on areas (non-skid surface). |
| Bulkhead Mounting | Marine & RV Interiors | Vertical installation for compartment access. |
| Inspection Point | Universal Marine | Ideal for fuel tanks and electrical hubs. |
OEM Cross Reference
| Manufacturer | Nuova Rade / Lalizas |
| MPN | 196300 |
| EAN / Barcode | 5204981963001 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Nuova Rade Top Line series hatch, manufactured in Italy to the highest marine standards.
How do I know if it is compatible?
Please verify your required cut-out dimensions (237 x 357 mm). If your current opening matches or is slightly smaller, this hatch will provide a perfect fit.
Can this hatch be used in areas where people walk?
Yes, the hatch features a reinforced non-skid surface and robust ASA construction, making it suitable for deck installations where it may be walked upon safely.
Note: Please verify your installation clearance and cut-out requirements against the technical specs provided above before purchasing. All 4Boats orders are checked for quality prior to dispatch.
