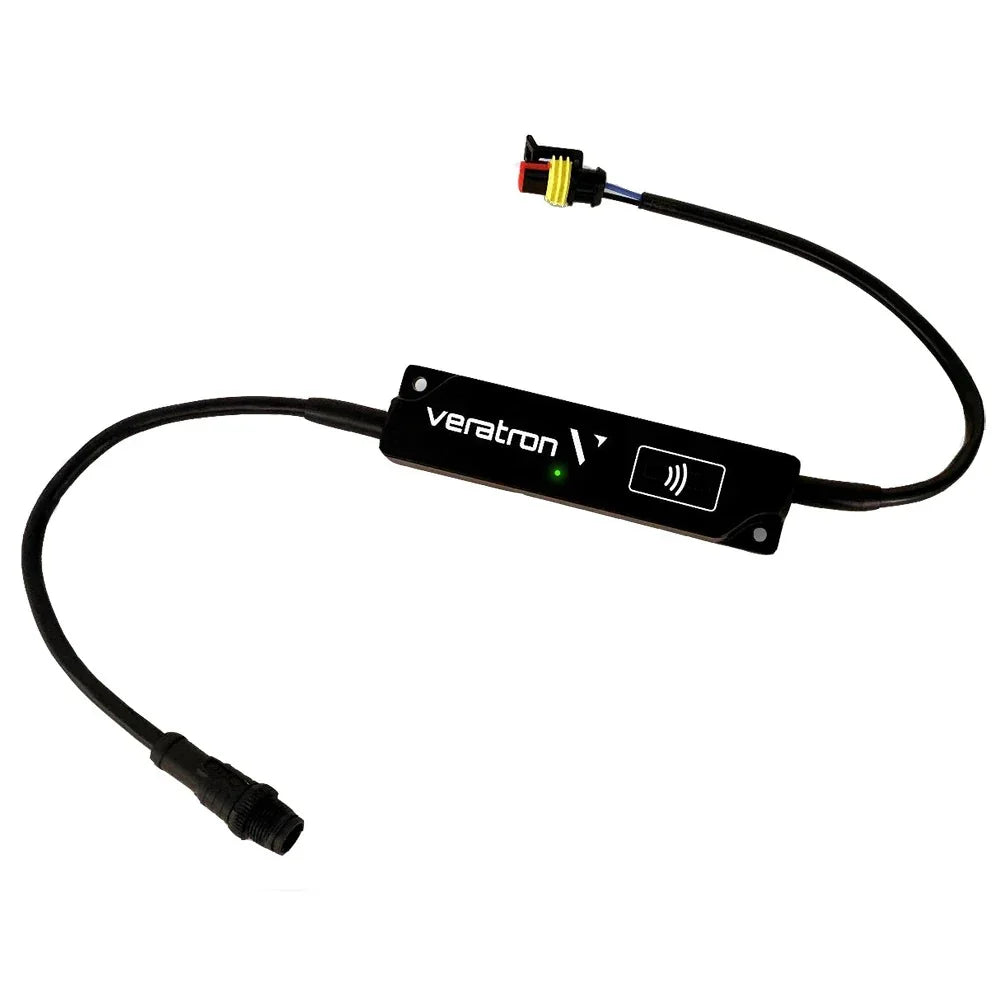

Veratron LinkUp Gateway converts analogue resistive vessel and engine sensors to NMEA 2000 and is powered by the network. NFC smartphone setup enables fast configuration.
- Operating voltage: 6-16.5 V (12 V nominal from NMEA 2000)
- Power consumption: ≤100 mA
- Protection: IPX7
- Operating temperature: -30° to 80°C (-22° to 176°F)
- Supported sensors: fuel level; fresh/waste water level; oil/boost pressure; coolant temperature; trim tabs; rudder angle

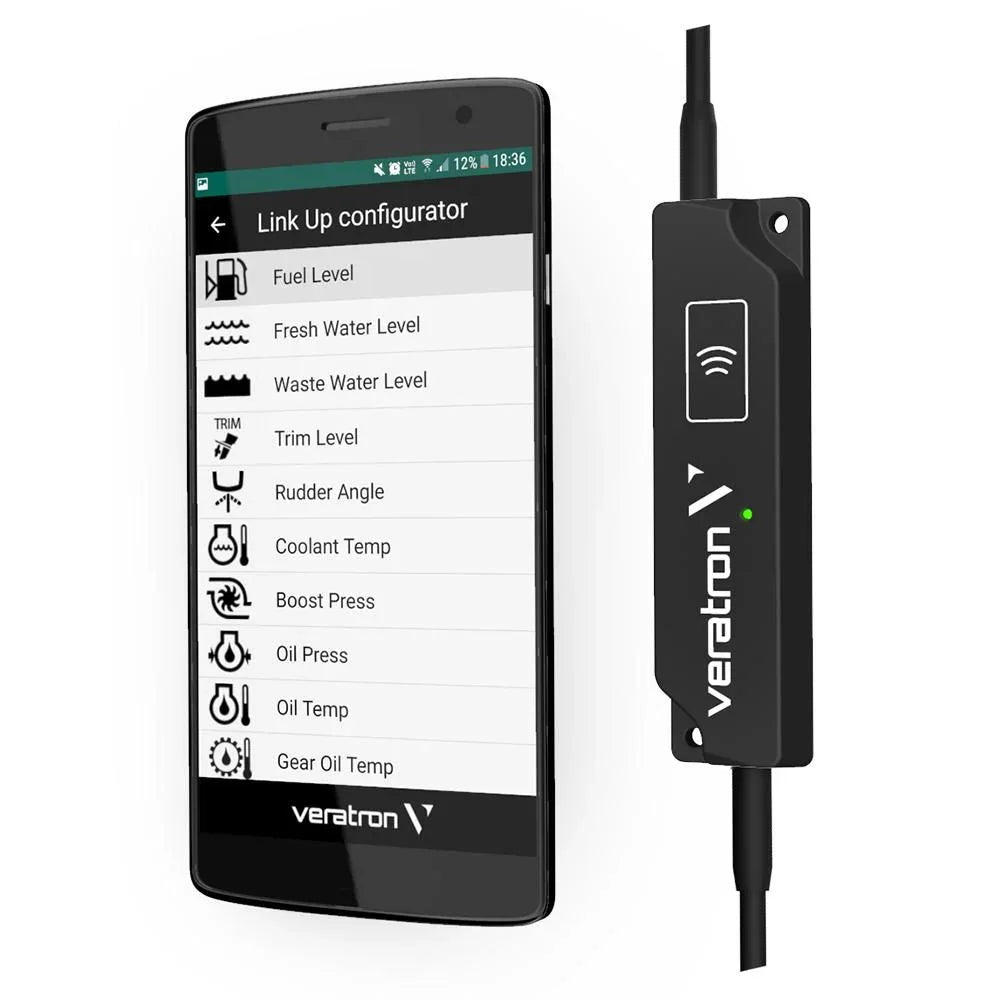

- Smartphone configuration via NFC (iOS and Android)
